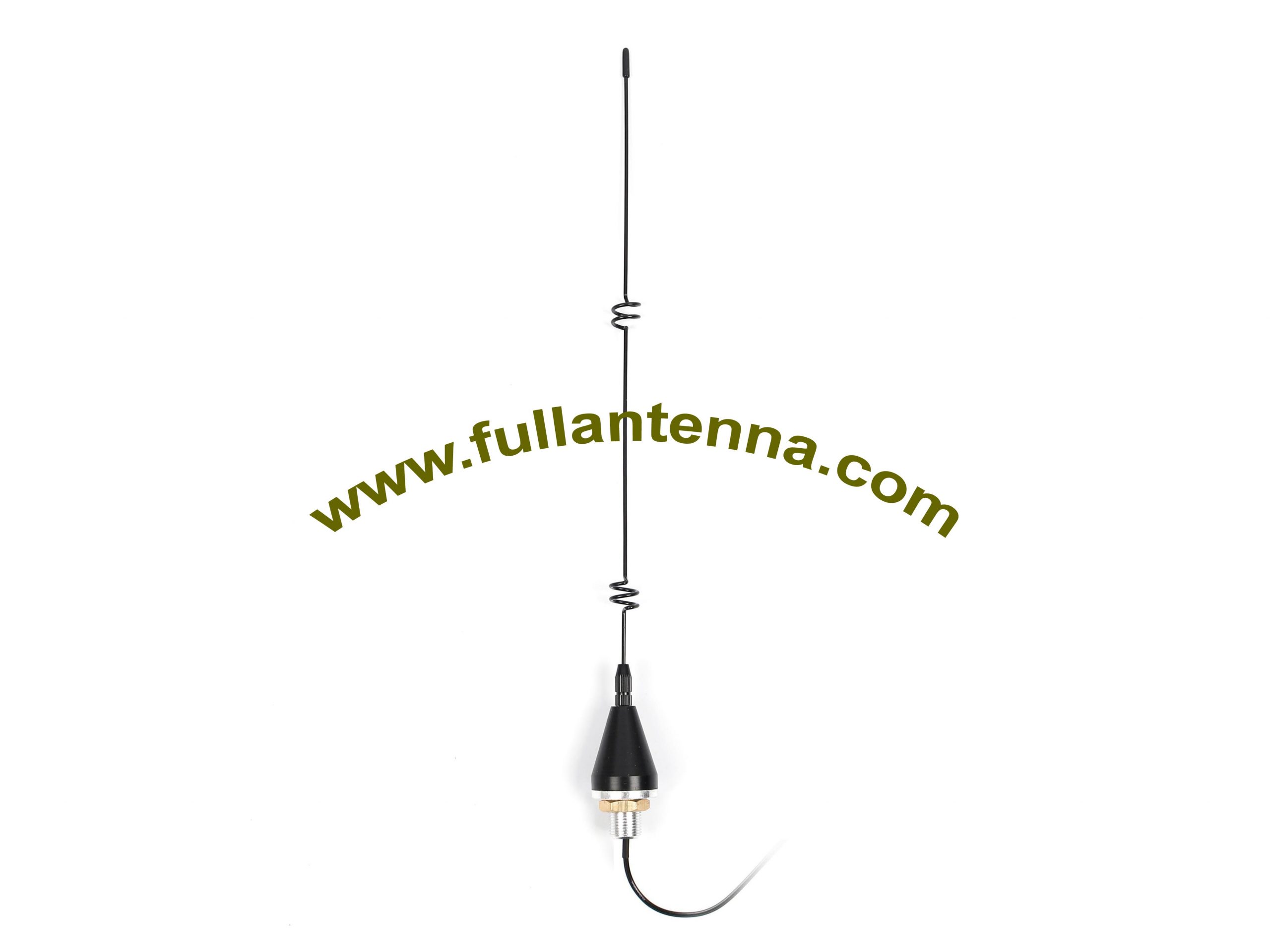

P/N:FAGSM.0603,GSM External Antenna,outdoor antenna screw mount 2-5meters cable FAKRA

Model: FAGSM.0603

Frequency(MHz):850-1900/900-1800
Bandwidth(MHz):90/280
VSWR ≤1.5
Gain(dBi):7
Max Input power(W):60
Input Impedance(Ω):50
Polarization:Vertical
Size(mm):Φ24(Base)×290(Height)
Cable Length(m):2,3,5 etc.
Cable Type:RG174
Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Screw
Housing:Black
Storage Temperature:-45℃ to+75℃
Operating Temperature:-45℃ to+75℃
